Attributes

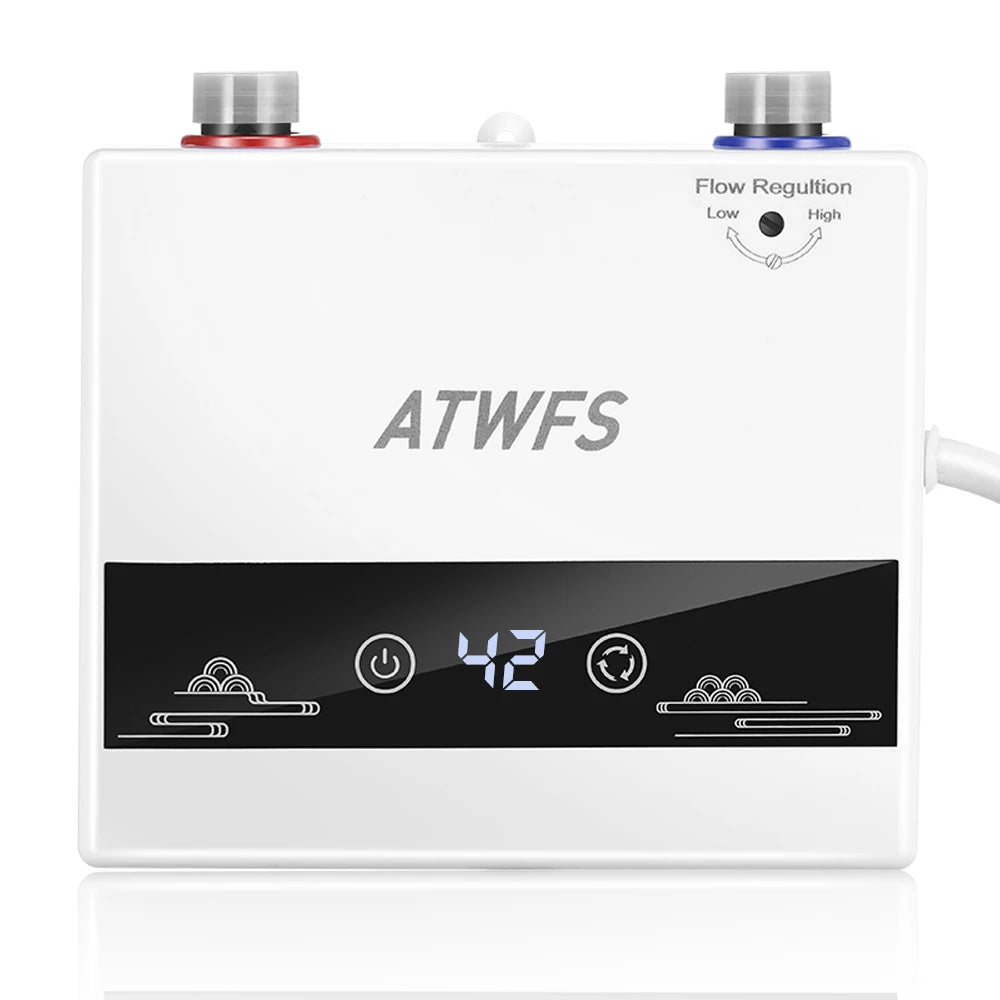

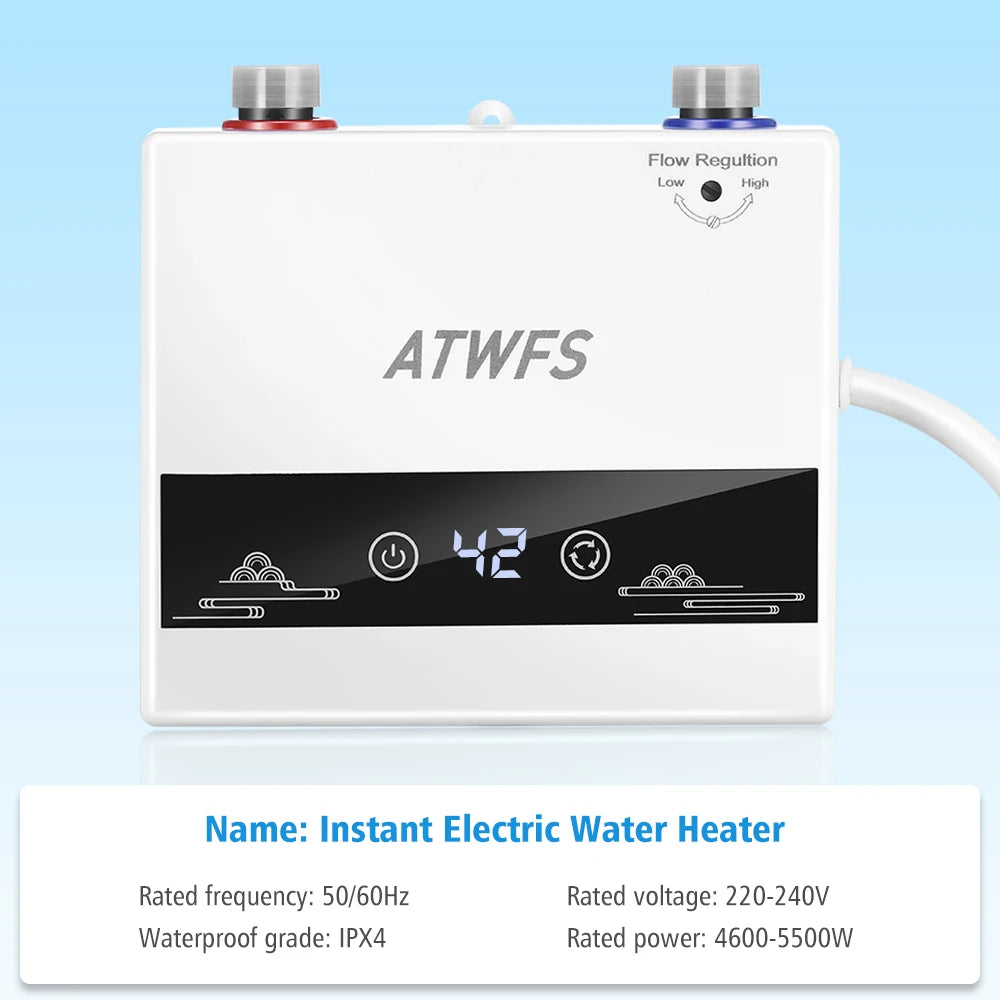

Instant Electric Water Heater

Color: White

Material:ABS +PC

Weight: About 950g

Rated frequency: 50/60Hz

Rated voltage: 220-240V

Rated power: 4600-5500W

Waterproof grade: IPX4

Working Pressure: 0.04-0.5MPA

Cord Length: About 1.1m

User instructions

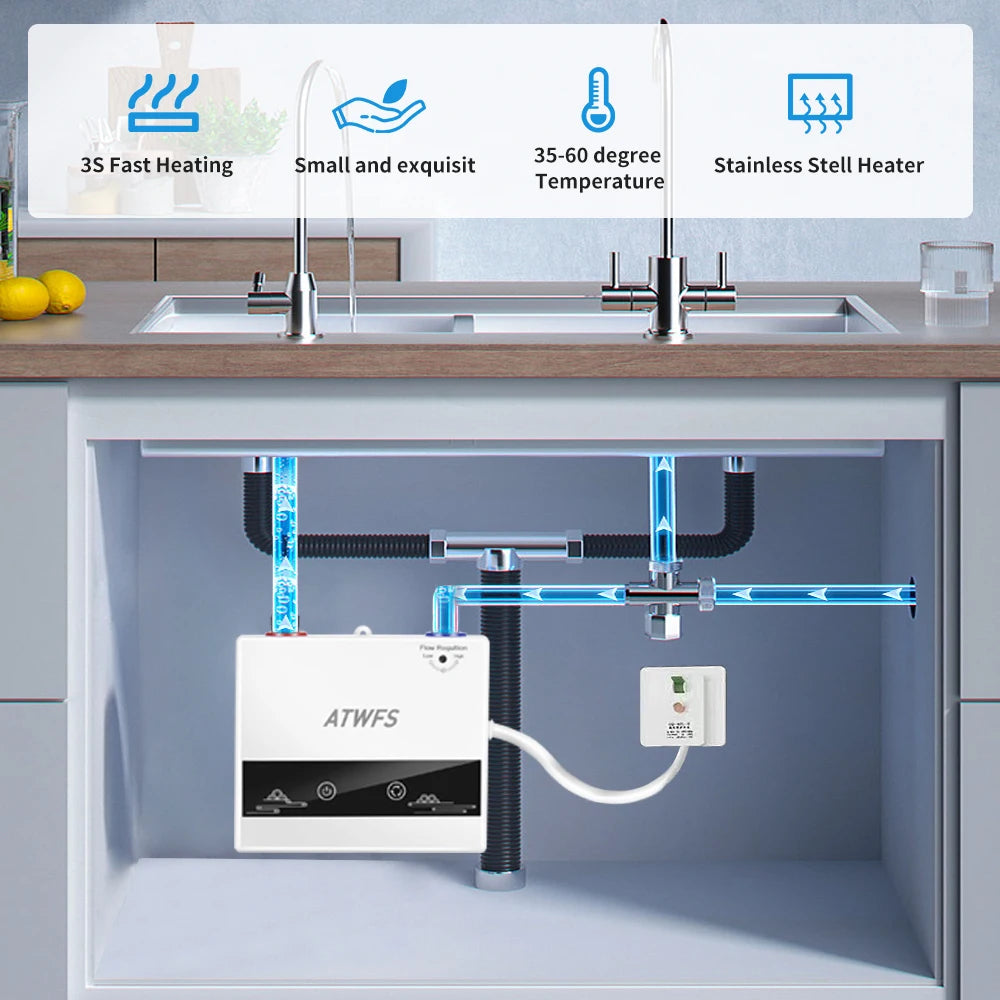

Instruction manual for water heater (under washstand mode)1. The bottom is the cold water inlet and the top is the hot water outlet. Fix the product verticallyon the dry and waterproof wall.2. lf there are two water inlet pipes under the sink, one is the hot water pipe (connected to theoriginal water heater), the other is the cold water pipe, then the water heater must be connectedwith the hot water pipe, the cold water pipe remains the same. f there is only one water inlet pipe(cold water pipe) under the washstand, the water heater shall be directly connected in the middleof the cold water pipe.

3. After the installation is completed, water should be supplied first and then plug10,

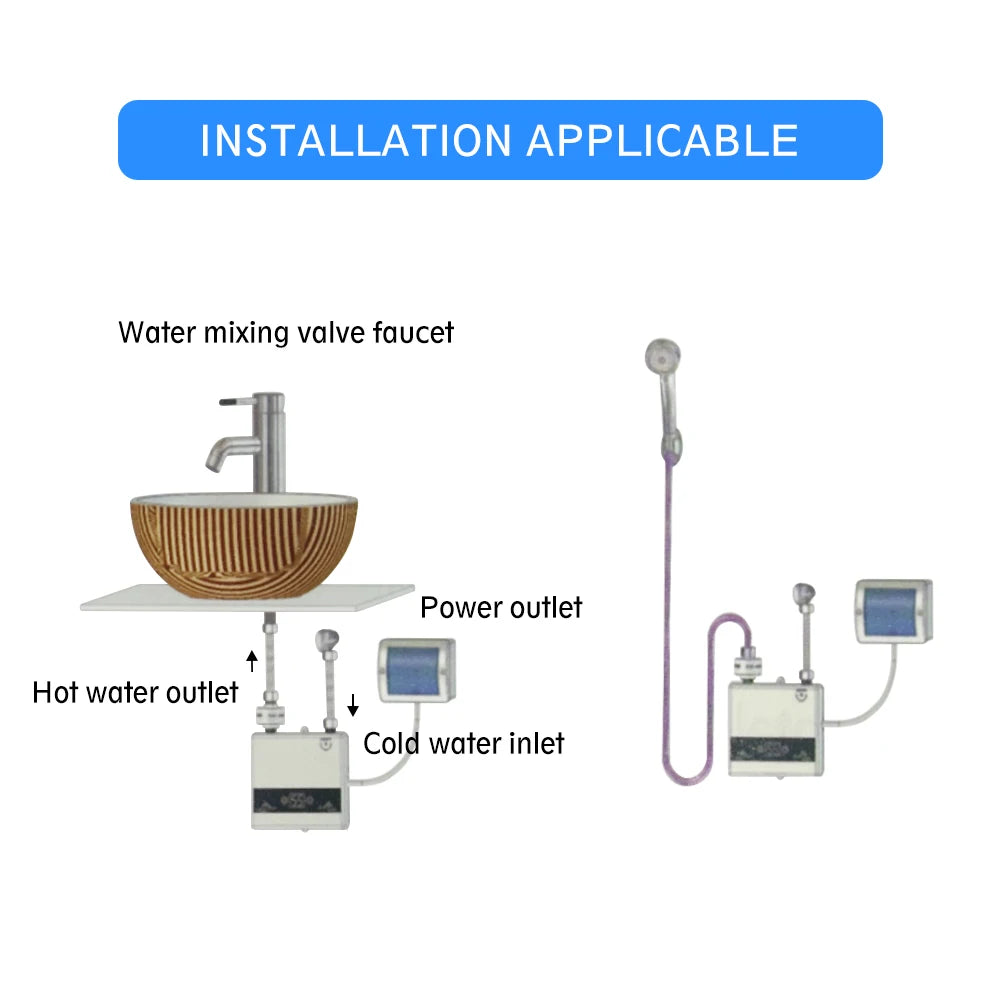

4. See the water heater installation diagram for specific installation.

Performance:

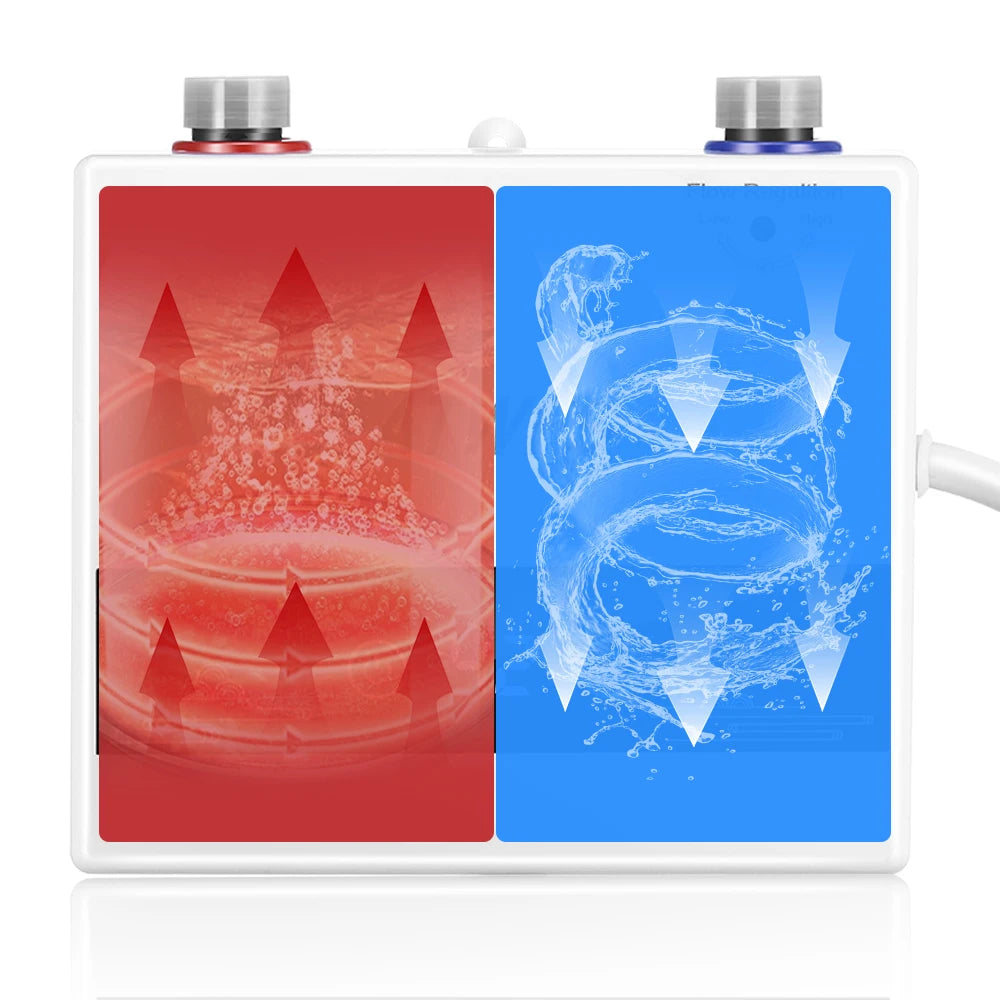

1, 3 seconds heating speed, which means that the heat. No need to wait, easy to use.

2, real water isolation system protection features built-in high sensitivity leakage protection, anti-dry design to ensure that there is water power, ultra-high pressure waterproof design, safe care.

3, it is suitable for domestic water, wash, washing dishes, vegetables and other uses.

Notes:

When use product frist, please let cold water flow frist , after can open hot water button

1. lf there are two water inlet pipes under the washstand, one is the hot water pipe (connected tothe original water heater), the other is the cold water pipe, then the water heater must beconnected with the hot water pipe, the cold water pipe remains the same.

2. If there is only one water inlet pipe (cold water pipe) under the washstand, the water heater shallbe directly connected in the middle of the cold water pipe.
